30+ Years Experienced custom fastener manufacturer &  factory committed 0 PPM for production

Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 1
Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 2
Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 3
Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 1
Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 2
Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 3

Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw

What are Stud welding used for?
Stud welding is a method that contacts one end of the stud with the surface of the plate (or pipe fitting), energizes the arc, and gives the stud a certain pressure to complete the welding after the contact surface melts. Cylindrical head studs for arc stud welding are applicable to high-rise steel structure buildings, industrial factory buildings, highways, railways, bridges, towers, automobiles, energy, transportation facilities buildings, airports, stations, power stations, pipe supports, lifting machinery and other steel structures.


    oops...!

    no product data.

    Go to homepage
    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 4
    Our Advantages
    1、 Quality defective rate is 50PPM.
    2、 ISO 9001 & IATF16949 certified.
    3、 15+ years manufacturing experience.
    4、 Have rich experience to cooperated with famous brand , like Porsche 、Tesla、Volvo 、Valeo、Paccar...
    5、 Providing certificate such as PPAP Level3 、RoHS、MSDS、IMDS etc.
    6、 Generally Production lead time is 15 days or even less.
    Product Description
    Name
    weld screw stud 、rivet screw
    Material
    Stainless Steel,Carbon steel,Brass,Titanium,Aluminum or as your requirements
    Size
    M1-M36,or non-standard as request&design
    Finish
    Carbon Steel, Alloy steel, Brass ,Stainless steel,etc
    Standard
    ISO,GB,DIN,JIS,ANSI/ASME,BSW,Non-standard. or base on the Drawings or Samples
    Certificate
    ISO9001,ISO14001,IATF16949, ROHS
    Surface treatment
    zinc plated,Ni-plated,Passivated,Black Oxide,Bronze
    Advantage
    OEM Customized Service Provided
    USE
    Automobile, aviation, new energy, high-speed rail
    Packing
    Cartons+plastic Bags
    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 5
    Details Images

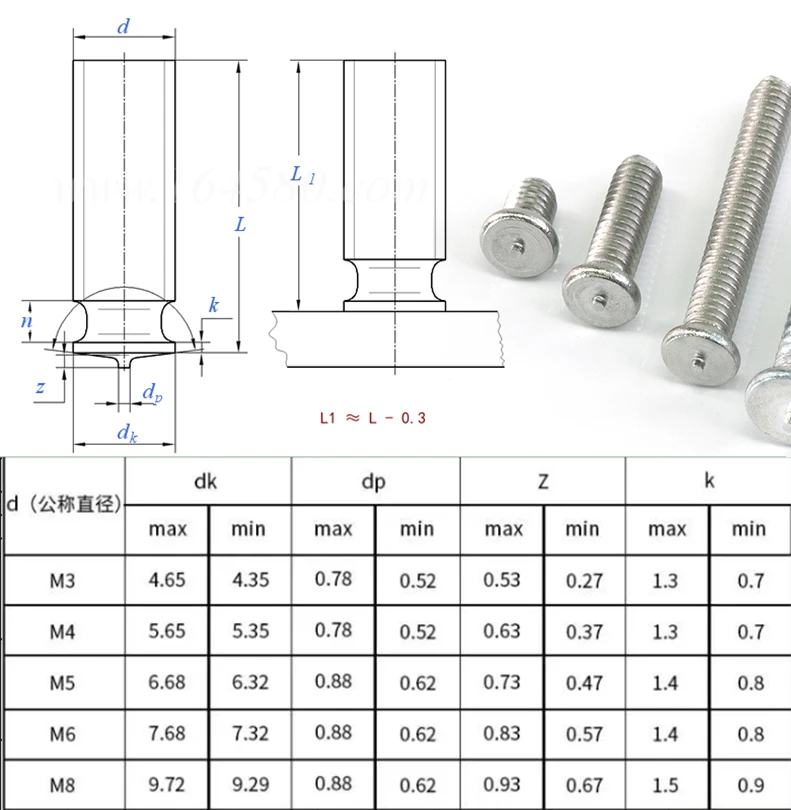

    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 6
    What is a weld screw?
    Weld Screws are designed to be welded onto a metal surface with a shaft remaining for items to be placed over and held in place with a nut and washer.

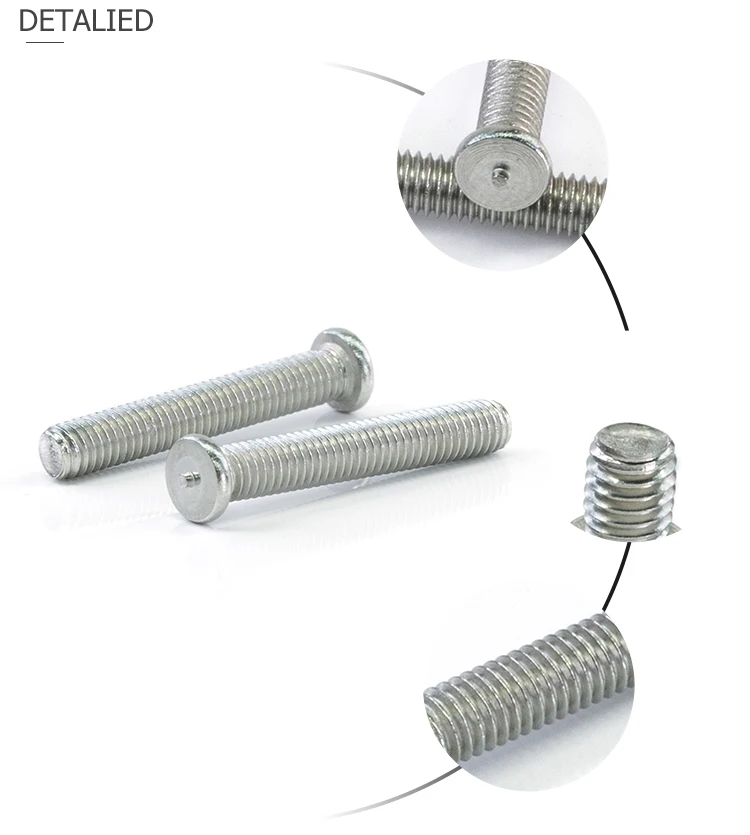

    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 7

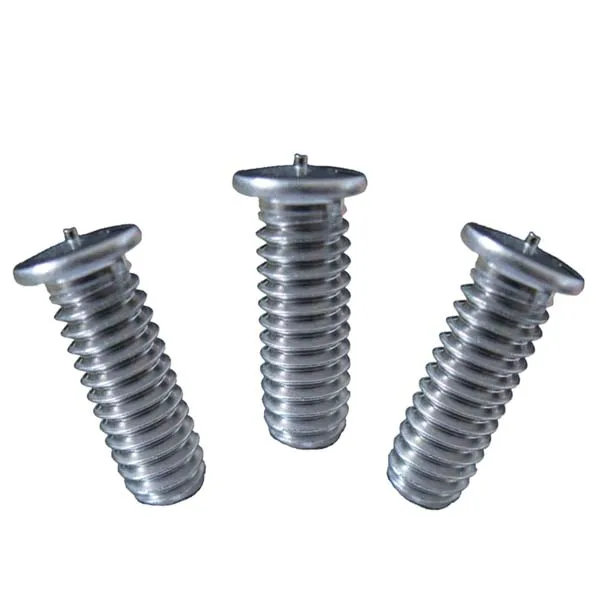

    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 8
    Weld studs
    Stud welding is a method that contacts one end of the stud with the surface of the plate (or pipe fitting), energizes the arc, and
    gives the stud a certain pressure to complete the welding after the contact surface melts.
    Welding screw
    screwing and finishing
    Corrosion resistance Chemical corrosion resistance high strength high-precision


    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 9

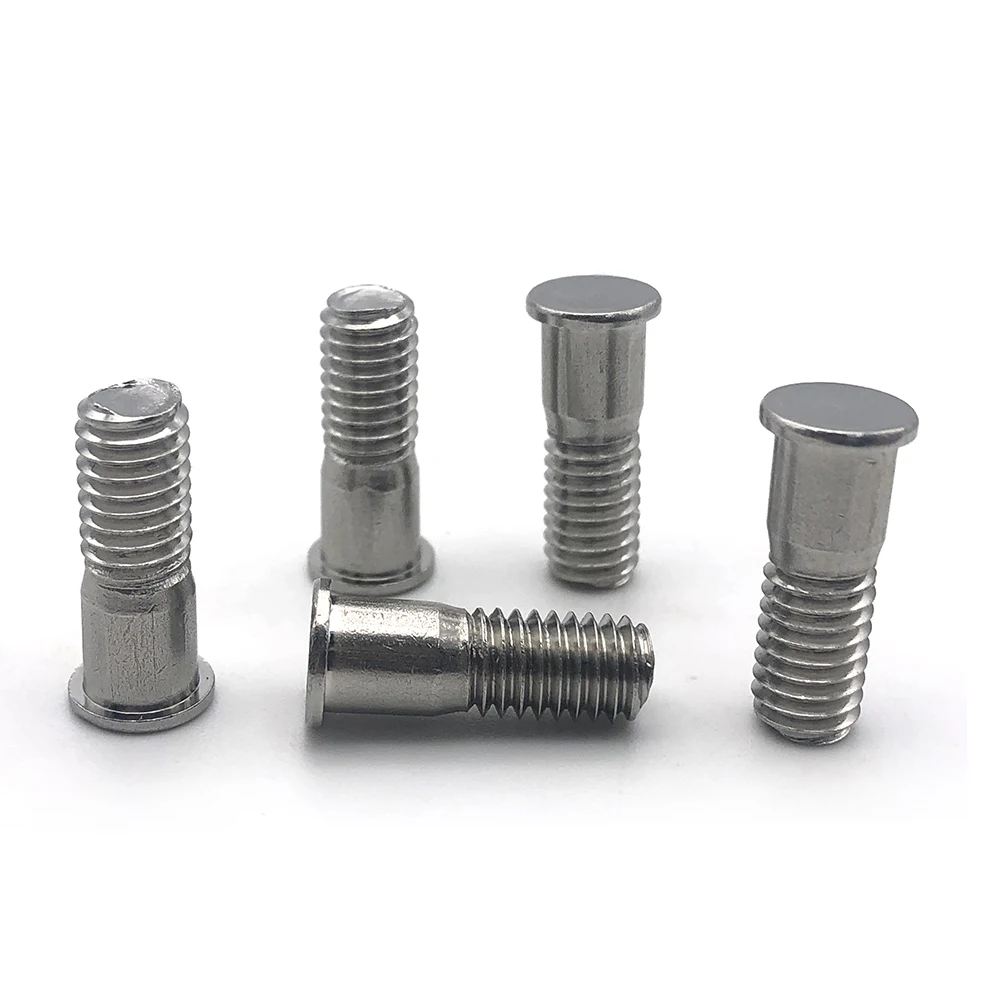

    Stainless Steel Weld Stud M6X20 M6X25 With One Point Headed Weld Studs Rivet Screw 10

    Stainless steel weld studs
    The structure of stud welding does not need drilling, punching, threading, riveting, screwing and finishing
